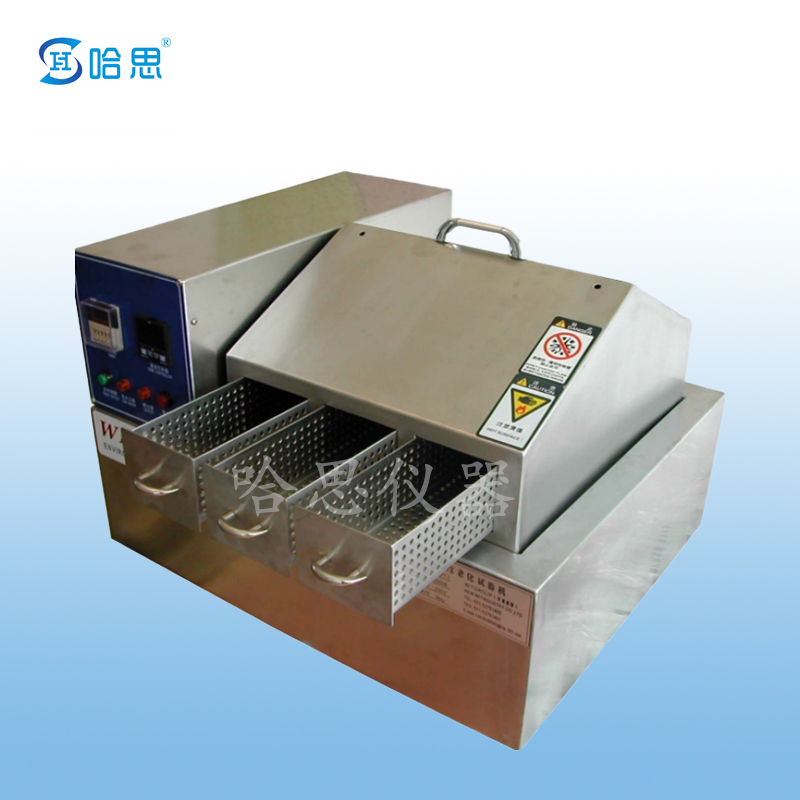

Steam aging test chamber
Product Name: Steam Aging Test Chamber
Product model: HS-ZQ-34
Product Usage:
1. Semiconductor IC, transistor, secondary body, liquid crystal LCD, chip resistor capacitor, component industry;
2. The aging accelerated life time test before the tin adhesion test of the metal pins of electronic components.
Features:
1. Platinum temperature sensor (PT-100) and precise temperature controllable resolution capability of 0.1℃;
2. Steam test target setting control/steam test operation timing time setting control;
3. The inner box is made of stainless steel material SUS#316 all-argon welding and the outer box is made of SUS#316 material automatic safety protection device;
4. Steam water cut off water and air burning protection device (Teflon coating);
5. It can be expanded to schedule start-up time control device/pure water RO reverse osmosis automatic water supply device.
technical parameter:
1. Internal size: 50X40X17CM (W*H*D)
2. External dimensions: 60X50X42CM (W*H*D)
3. Temperature range: Upto97℃
4. Controller: PID microcomputer control
5. Heating method: PID+SSR
6. Heating time: about 45 minutes
7. Timer: 9999 points
8. Voltage: 220V
9. Electric heating (KW): 2KW
