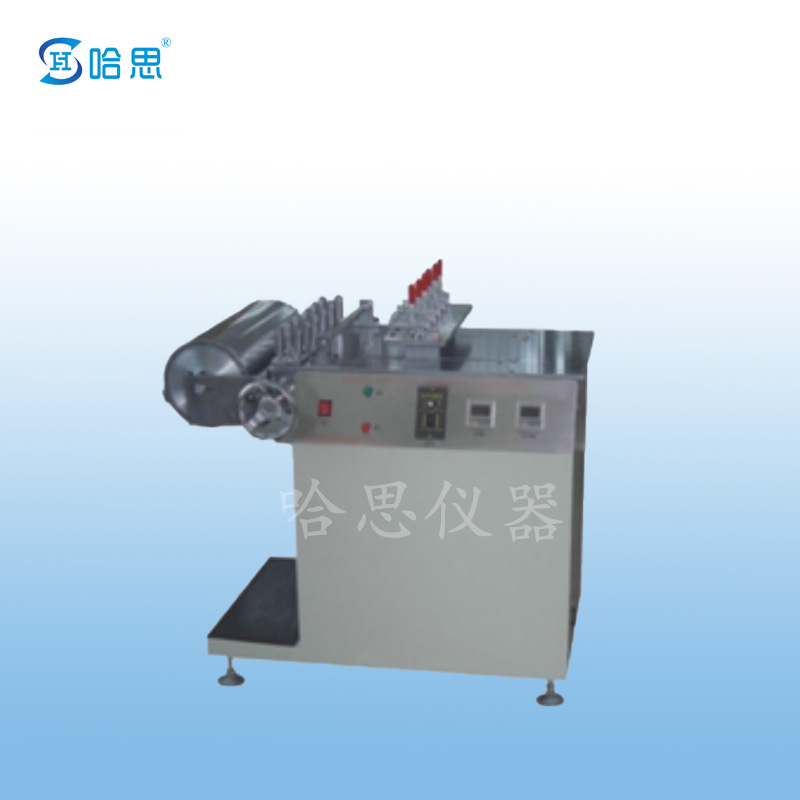

Wire Abrasion Tester
Product Name: Wire Abrasion Tester
Applicable standards: UL62-2010 Section 5.1.14, UL2556-2007 Section 7.9.2, UL507-2010 Section 51B requirements.
The main technical parameters:
Power supply: AC220V±10% 50/60Hz
Drive mode: AC speed control motor drive
Emery cloth specifications: 1/2 grade (medium) emery cloth imported from the United States
Radius of curvature: 88.9mm(3.5in)±1%
Test rate: 28 times/min (adjustable)
Counter: counting range 0~9999 times, accurate counting, preset self-stop, power failure memory, automatic delay reset
Test stroke: 160mm(6.25in)±5%
Number of test pieces: 6 groups
