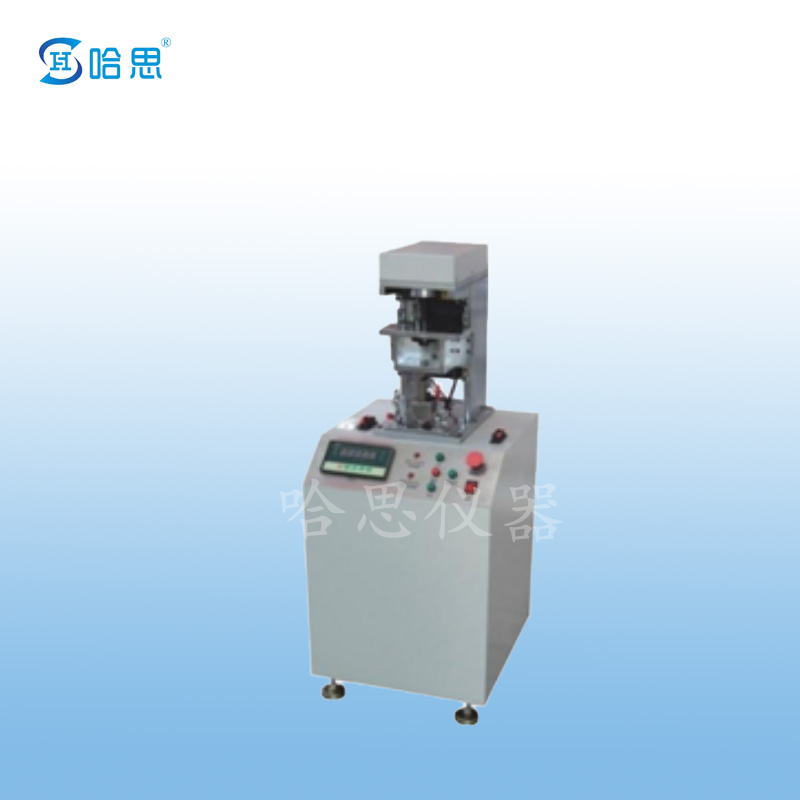

Power cord pinch test machine
Product Name: Power Cord Clamping and Extrusion Testing Machine
Applicable standards: UL62-2010 Section 5.1.16, UL507-2010 Section 51C requirements.
The main technical parameters:
Force range: 0~3000N
Load accuracy: 1%
Maximum stroke: 100mm
Clamping rate: 5.08±1.27mm/min adjustable
Dynamometer: LED digital display, can display the test value, the highest value
Mandrel sharp angle R: 1.19mm
Drive mode: AC speed control motor drive
Detection function: It has the function of short circuit of the wire core and short circuit between the wire core and the splint.
Power supply: AC220V±10% 50/60Hz
